Defi Xpress

Defibrillator with 7" monitor ,Selectable: Manual Defibrillator,AED and Patient Monitor

Defi Xpress
is a defibrillator device with voice alarm, which can meet your clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).
Standard Configration  : Monophasic , Biphasic , AED , Thermal Printer


Patient Monitor Parameters :ECG 3/5 Lead ,SpO2 ,NIBP

Manual Defibrillator, AED and Patient Monitor

Defi Xpress features

  • Large Screen

    7” TFT display offers clear visibility of ECG, vital signs and all patient data

  • Rugged design

    with IP44 rating and impact tested to 0.75m. Ideal for use in hospitals and by emergency services

  • Clinically Validated

    The device has proven its reliability and accuracy under vigorous testing procedures by major health organisations

  • Cuff Wrap Guide

    Indicates if cuff is wrapped correctly: not too loose or too tight

  • Multi Languges

    5 Languages available: English.Russian.
    Spanesh.Chinese.Turkish

  • Irregular Heartbeat Detection

    Indicates if Irregular Heartbeat is detected

  • Memory

    Keep track of your data

  • Comprehensive patient monitorin

    Offering diagnostic quality 3/5 lead ECG and respiration with optional SpO2(Meditech.Nellcor) , NIBP

 ECG Monitoring
 Patient Connection: 3-lead ECG cable or 5-lead ECG cable paddles.
 Lead Selection: Displayed on monitor paddles I II III AVR AVL AVF V.
 ECG Size: 0.25 0.5 1 1.5 2 4 cm/mV display on monitor.
 Heart Rate: 20-300BPM.
 Heart Rate Alarm: On/Off displayed on monitor user-selectable.
 Smart Alarms: Beeper/voice prompts indicate shock able rhythm.

SpO2 Module (Options):
 Measurement Range: 30~100% ±2% between 80%~90% others ±5%
 Alarm Range: User set high limit and low limit.
 Alarm Accuracy: ±10% within setting values.
 Alarm time Accuracy: less than 12 sec.
1-Meditech Pulse Oximeter
2-Nellcor Pulse Oximeter

NIBP Module (Options):
Way of measurement Automatic oscillometry
Range of measurement
Adult    SYS 30~270 mmHg  DIA 10~220 mmHg  MEAN 20~235 mmHg
Child   SYS 30~235 mmHg   DIA 10~220 mmHg  MEAN 20~225 mmHg
Neo     SYS 30~135 mmHg  DIA 10~110 mmHg  MEAN 20~125 mmHg



7 inches (16.5 cm) diagonal, non-fade.
Type: color (TFT)
Display Resolution: 800 x 600 pixels.
Sweep Speed: 12.5mm/s,25mm/s,50mm/s
Lead Selections: I, II, III, AVR, AVL, AVF, V.
Frequency Response: (User-selectable).
0.7 to 20 Hz operation mode
0.3 to 40 Hz Monitoring mode
0.05 to 150 Hz Analysis mode
0.5 to 30 Hz  AED mode
Common Mode Rejection:>=60dB
Heart Rate Meter: 20 to 300 BPM.
Heart Rate Alarms: User-selectable.
Size: 0.125, 0.25, 0.5, 1, 2, 4 cm/mv and auto-ranging.
ECG Output: 1 V/mV.
Heart Rate Response to Irregular Rhythm: (AAMI EC13-1992,section 4.1.2.1.e.)



High-resolution thermal Printer.

Annotation: Time, date, ECG lead, ECG gain, heart rate, defibrillation and treatment summary ACLS events.
Paper Width: 50 mm.
Paper Speed: 25 mm/sec, 50 mm/sec, 12 Lead, 50 mm/sec
Delay: 6 seconds.
Frequency Response:
Automatically set to monitor's frequency response.



Defi Xpress Options and Accessories

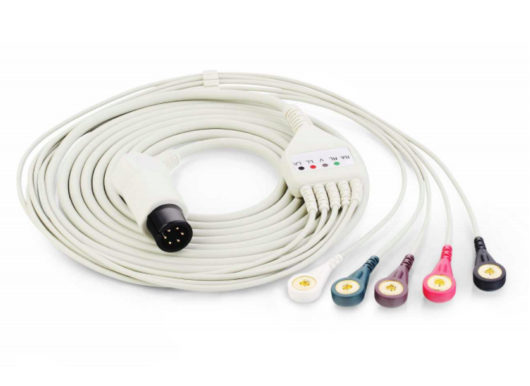

ECG cable

MD/DEFX-C ECG Cable (3 Leads)
ECG Cable (5 Leads)
ECG Alligator Clips (Metal)

Battery

MD/DEFX-RB1

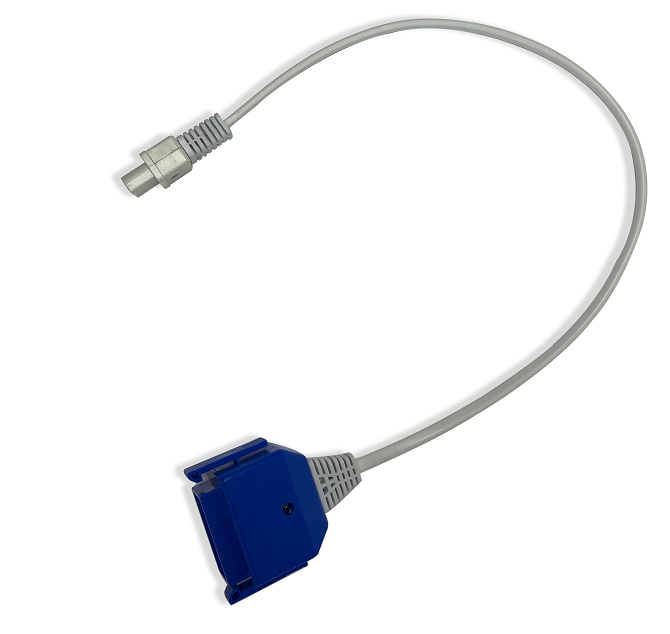

AED PAD connector

MD/DEFX-PC1 Using to connect the disposable AED pad with the DefiXpress®

External Cable for AED Pad
Size: 30  CM

SpO2 Cable

MD/DEFX-S SpO2 Cable (Adult)
SpO2 Cable (New born)
SpO2 Cable (Adult finger clip)
SpO2 Cable (Child finger clip)
SpO2 Cable (multi-site Y type)
SpO2 probe (Soft tip)
SpO2 External Cable

NIBP Cuff

MD/DEFX-NC NIBP Cuff (infant 8 - 14 cm 5/Bag)
NIBP Cuff (Child 13 - 20 cm 5/Bag)
NIBP Cuff (Small Adult 18 - 26 cm 5/Bag)
NIBP Cuff (Adult 26 - 35 cm 5/Bag)
NIBP Cuff (Adult Long 29 - 38 cm 5/Bag)
NIBP Cuff (Large Adult 32 - 42 cm 5/Bag)
NIBP Cuff (Large Adult Long 35 - 44 cm 5/Bag)
NIBP Cuff (Thigh 42 - 50 cm)
NIBP Tube 150cm

AED PAD

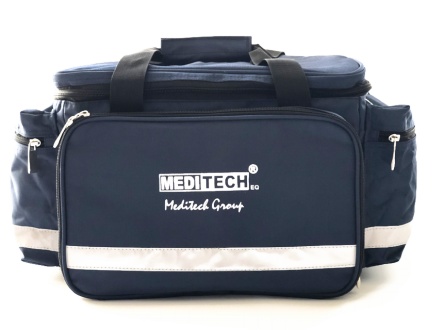

Defibrillator monitor case

Defibrillator monitor carry case (Carry bag)

Defibrillator Trolley

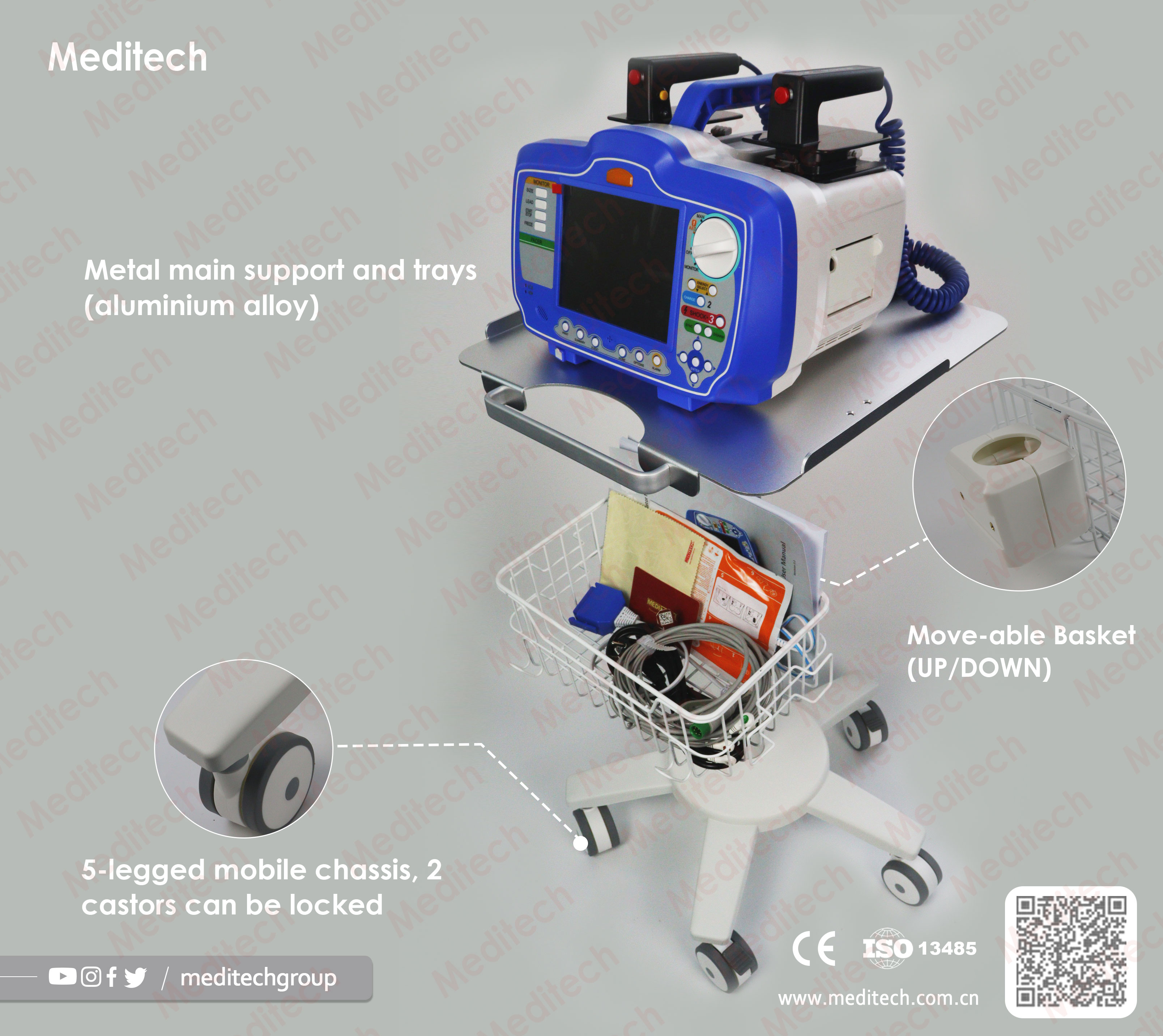

Meditech Mobile trolley Defibrillator monitors
Mobile trolley for the Meditech Defibrillator monitors with robust 5-legged mobile chassis and 2 locking castors. ECG accessories, such as electrode gel, can be stored in the attached basket. This mobile trolley is height adjustable and equipped with a suspension for the patient leads.




  • Product Details for the Meditech Defibrillator MonitorTrolley
  • Practical Defibrillator Monitor trolley
  • Metal main support and trays (aluminium alloy)
  • 5-legged mobile chassis, 2 castors can be locked
  • 1 Moveable(Up/Down) basket for  accessories
  • 1 suspension for patient leads
  •

  • ECG cable

    MD/DEFX-C

  • Battery

    MD/DEFX-RB1

  • AED PAD connector

    MD/DEFX-PC1

  • SpO2 Cable

    MD/DEFX-S

  • NIBP Cuff

    MD/DEFX-NC

  • AED PAD

  • Defibrillator monitor case

    Defibrillator monitor carry case (Carry bag)

  • Defibrillator Trolley

    Meditech Mobile trolley Defibrillator monitors

Frequently asked questions

  • How many language available?

    English, German ,French,Turkish,Spanish,Arabic,Thai,Russian,Chinese

  • Is there any memory in the Defi

    Yes Have memory for ECG wave is 73.1 hours and wav (voice) is 9.3 hours

  • What options Defi xpress have?

    Defixpress options are: SpO2, NIBP, EtCO2, Pacemaker, SD upgrage memory and PC Software for data transfer

  • What is the standard configurat

    Defibrillator monitor Defi xpress comes with ECG Monitor, Automated External Defibrillator, printer , and for accessories : AED pad, AED pad connector, 1pcs of paper role,Ground cable,Power cable (all countries standard available)

  • How many minutes defixpress nee

    Defixpress need 6 seconds to charge battery to 200J work
