Defi 5s
Automated External Defibrillator (AED) with Selectable Energy and large memory
Defi 5s
Selectable Energy AED , Easy to use, Reliable technology&analysis algorithm, Clear Voice prompt, Clear Voice prompt, Wide-range environments
Infrared for data transfer
Energy Sequence Selectable 30J-200J for diffrent age
Defi 5s features
-
Programmable Energy
Selectable Energy for Adult use or Child
-
Storage
Large memory capacity up to 1500 case
-
Self Test
Daily,Weekly,Monthly Self test
-
Data Transfer
Infrared data transmission
-
Memory
Keep track of your data
Type: Automatic External Defibrillator
Self-test: battery, processor, memory, ECG acquisition system and defibrillator.
Mode: Adult, Child
Waveform: Biphasic truncated exponential
Energy: 200-Joules max.
Energy Sequence Selectable: 30, 30, 50 J
50, 50, 75 J
120, 120, 150J
150, 150, 200J
Charge time: Less than 6 sec. to 150J
Less than 8 sec. to 200J
Voice Prompt:Extensive voice prompt
Visual Indicators: LED prompts
Control:Two buttons: ON/OFF, Shock
ECG storage: 1,500 events.
Data transmission Infrared
Overview of Defi 5s
The Defi 5s Automatic External Defibrillator (AED) is a lightweight, safe and battery powered device. It is design for simple and reliable operation of trained users. It can be used in situations where there could be several minutes before the arrival of advanced life support (ALS) personnel.
The Defi 5s Automatic External Defibrillator recognizes ventricular fibrillation and other ventricular tachycardia and guides operators through the defibrillation process. When properly connected to a patient who is unconscious, not breathing, and without a pulse, the Defi 5s Automatic External Defibrillator analyzes the patient's heart rhythm, provides visual and audio instruction prompts, determines if a shockable situation exists and then indicates user to press shock button.
The Defi 5s Automatic External Defibrillator delivers the defibrillation shock through two self-adhesive, pre-gelled, low-impedance electrode defibrillator pads. The pads, cable, and connector are sold as disposable kits.
The Defi 5s Automatic External Defibrillator is designed for INFREQUENT USE，and the term used to describe a DEFIBRILLATOR designed to endure less than 2500 discharges.
Features
Advanced biphasic technology
Easy operation: three buttons
Compact design: easy to carry and easy to operate
User friendly guide: clear voice and visual prompts
Lock-out protection to prevent inadvertent defibrillation
Two modes: adult mode and children mode
Why AED
The Defi 5s is used to the Sudden Cardiac Arrest (SCA) which most is caused by ventricular fibrillation (VF) or pulseless ventricular tachycardia (VT). SCA is the cessation of normal circulation of the blood due to the heart unexpectedly stops beating. The causes of SCA are varied, but the signs or symptoms of SCA are hardly revealed during the daily life.
Sudden cardiac arrest can happen to anyone at any time. According to AHA (American Heart Association) CPR statistics, there are about 300,000 victims of out-of-hospital cardiac arrest each year in the U.S. alone, and less than 8% of people who suffer cardiac arrest outside the hospital survive.
Early defibrillation is critical to survival from sudden cardiac arrest (SCA) for several reasons: the most frequent initial rhythm in out-of-hospital witnessed SCA is ventricular fibrillation (VF), the treatment for ventricular fibrillation is defibrillation, the probability of successful defibrillation diminishes rapidly over time, and VF tends to deteriorate to asystole over time.
To treat VF SCA, rescuers must be able to rapidly integrate CPR with use of the AED.
Defi 5s Options and Accessories

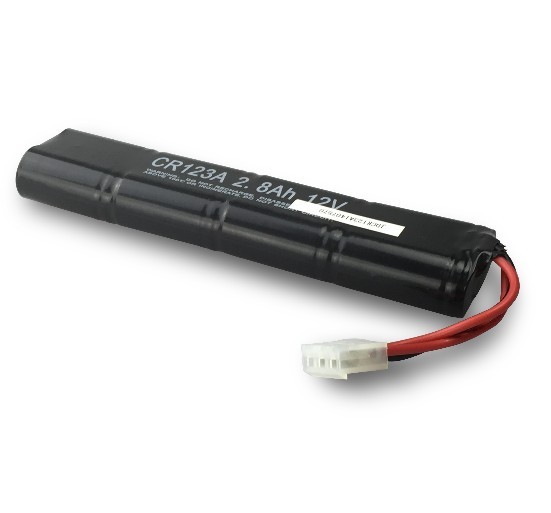

LiMnO2 Battery
Working power: 12V , 2.8Ah
Normal working condition:
Working temperature:5~40C
Relative temperature:=80%
Atmospheric pressure:86kpa~106kpa
The size:
The weight:
Attention:
Do not dispose of in fire or put into water
Do not disassemble or short circuit
Do not use in high temprature or near heat sourse

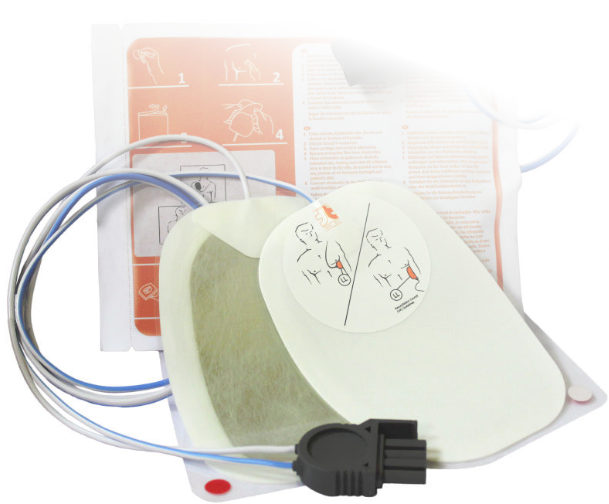

AED PAD
MDC-W1

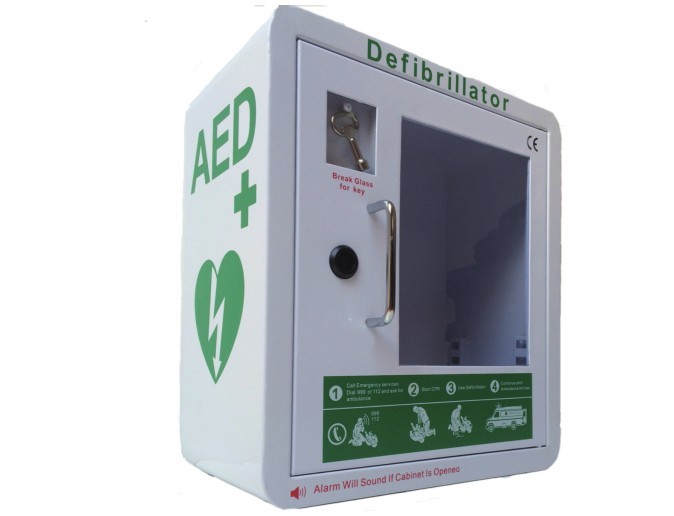

AED Cabinet W1
MDC-W1
Material: Metal+ Plastic glass
Size: 38x42x15.5cm
Color: any color available
Sound alarm
Carton size: 440x400x240 mm
Gross weight: 7.0kgs
MDC-W3

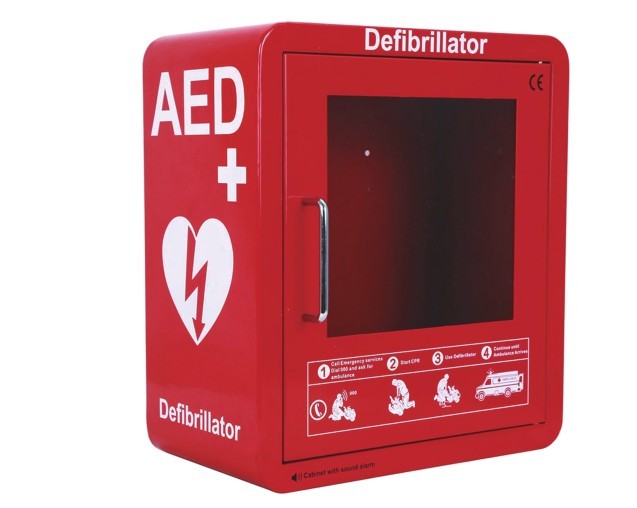

AED Cabinet W3
MDC-W3
Material: Metal+ Plastic glass
Size: 48x38x24CM
Color: any color available
Sound alarm
Adjustable Heating System
Carton size: 510x410x260 mm
Gross weight: 7.5kgs
MDC-W2
AED Cabinet W2
MDC-W2
Material: Metal+ Plastic glass
Size: 48x38x24CM
Color: any color available
Sound alarm
Adjustable Heating System
Carton size: 510x410x260 mm
Gross weight: 7.5kgs

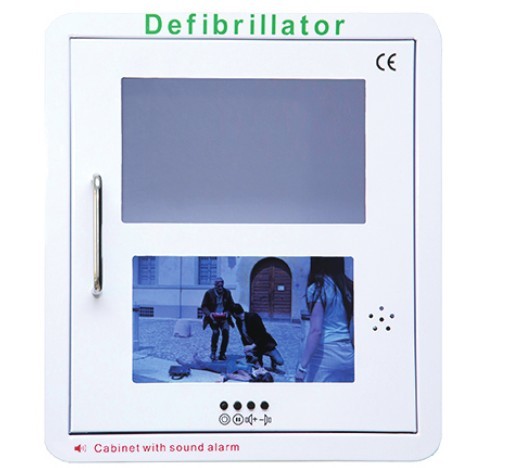

MDC-W4
AED Cabinet W4
MDC-W4
Material: Metal+ Plastic glass
Size: 36x40x20CM
Color: any color available
Sound & Light Alarm
Video Screen ( 200mmx110mm)
Carton size: 435*395*235 mm
Gross weight: 8.5kgs

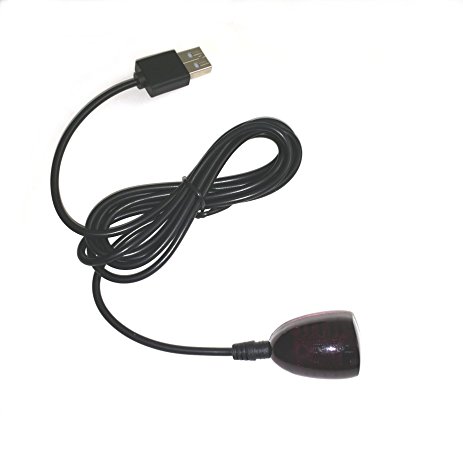

IR-210U USB to IrDA
Infra-Red Receiver
Enclosure
- Dimensions: 4.75 cm W x 6.35 cm L x 1.9 cm H
- Unit Weight: 113.4 grams (including 10' cable)
Display
- Red LED to indicate response traffic
Power and Power Management
- Powered by USB port
Range
- Approximately 27.5 m
- Range can be increased by utilizing multiple receivers.
Capacity
- 80 ResponseCard keypads per (1) IR Receiver

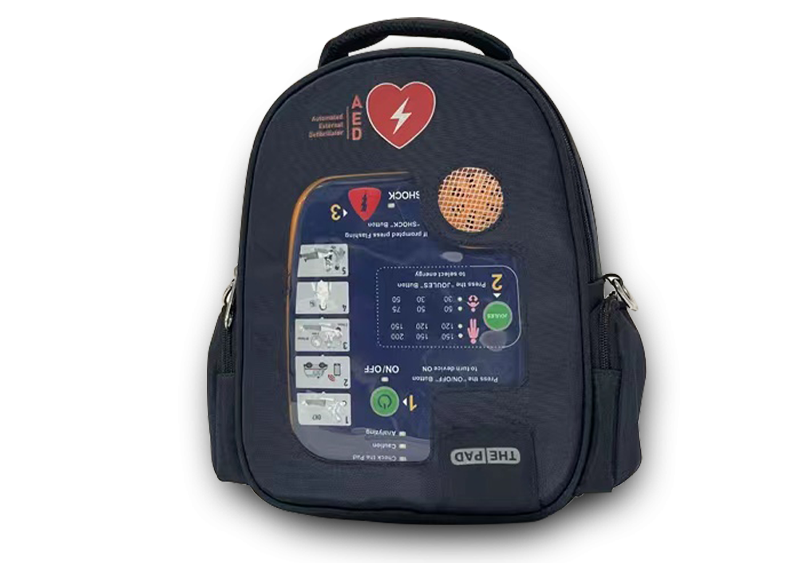

Carry Bag
Nylon Bag
